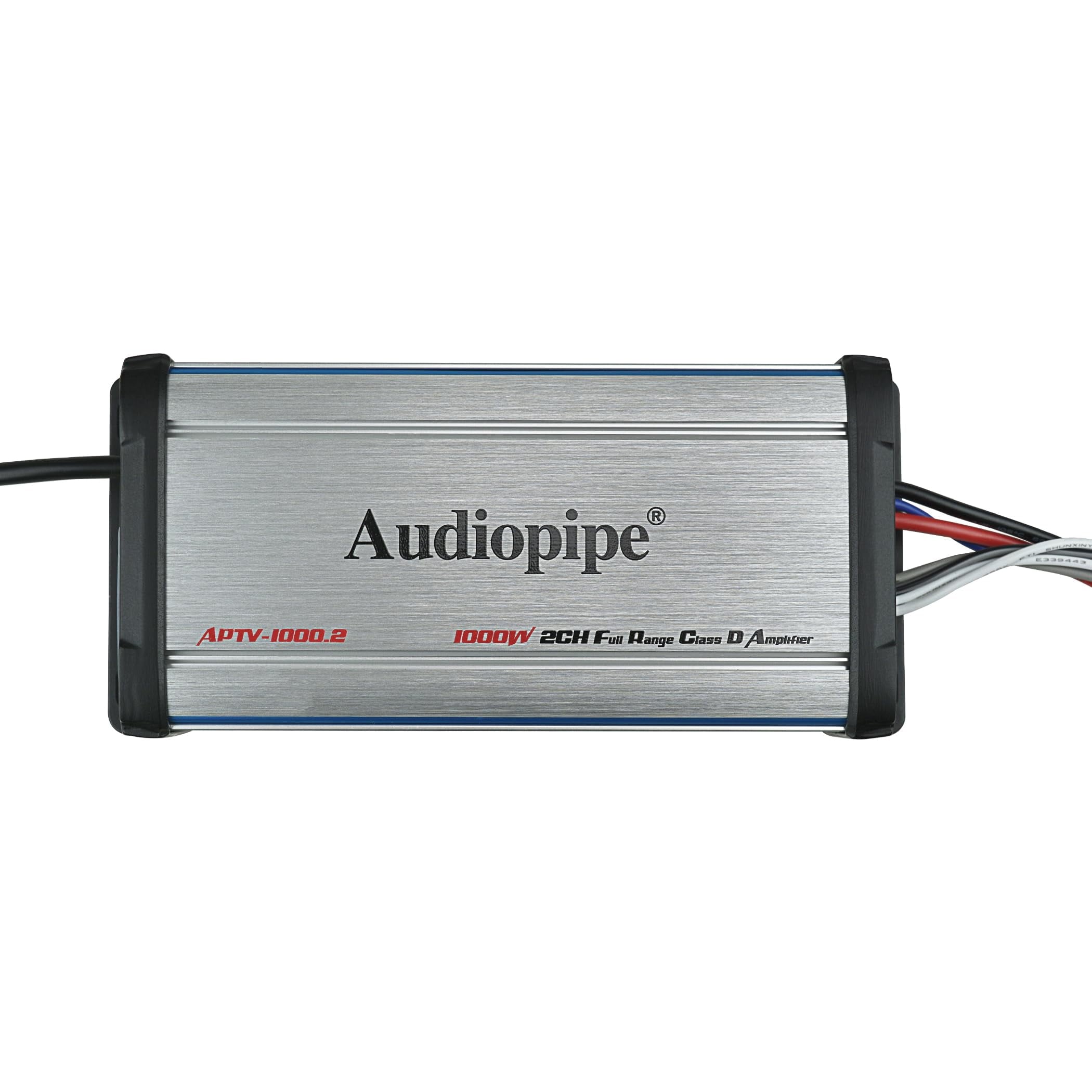

Audiopipe 1000W 2-Ch Micro Amp – Powersports IP67 Waterproof RZR Motorcycle Cruiser UTV Marine Amplifier
- Audiopipe introduces this new micro 1000 Watt 2-Channel Full Range Class D Amplifier that is designed to be used in some harsh environments.
- 100 WATTS RMS X 2 CHANNELS at 4 OHMS 160 WATTS RMS X 2 CHANNELS at 2 OHMS 320 WATTS RMS X 1 CHANNEL at 4 OHMS
- Adjustable 12db high pass/low pass crossovers CHIPSET – Full Range Class D using IR (International Rectifier) control chips
- PCB BOARD: SMD 4 layers conformal coated WATER RESISTANCE: IPX67
- FREQ RANGE: 20Hz-20KHz FUSING: 30 amp Dimensions: W 192MM H 40MM D 89MM
- Brand: Audiopipe
- Model: APTV10002
- Item model number: APTV10002
- Manufacturer Part Number: APTV-1000.2
Audiopipe introduces this new micro-amplifier 2-Channel Full Range Class D Amplifier that is designed to be used in some harsh environments.

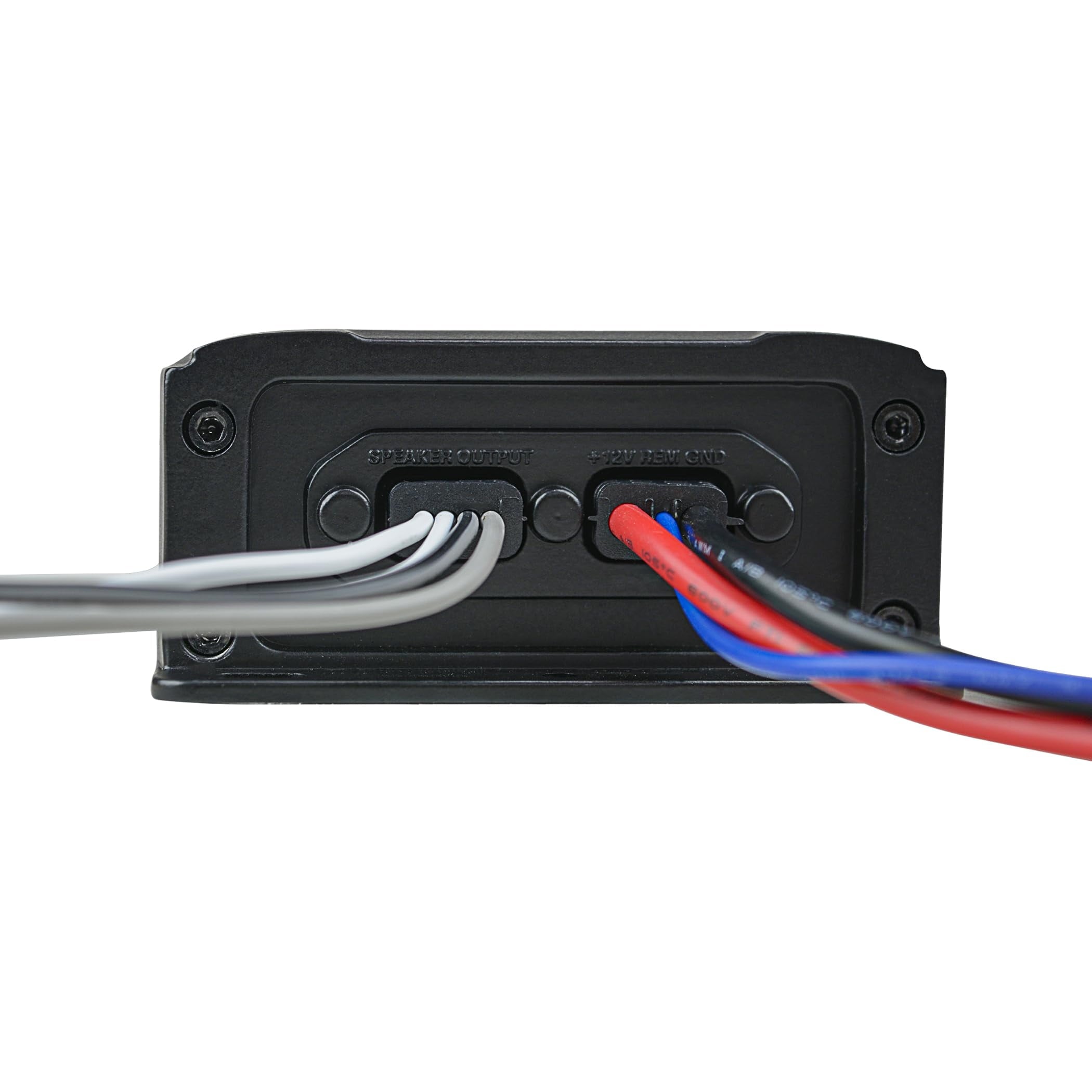

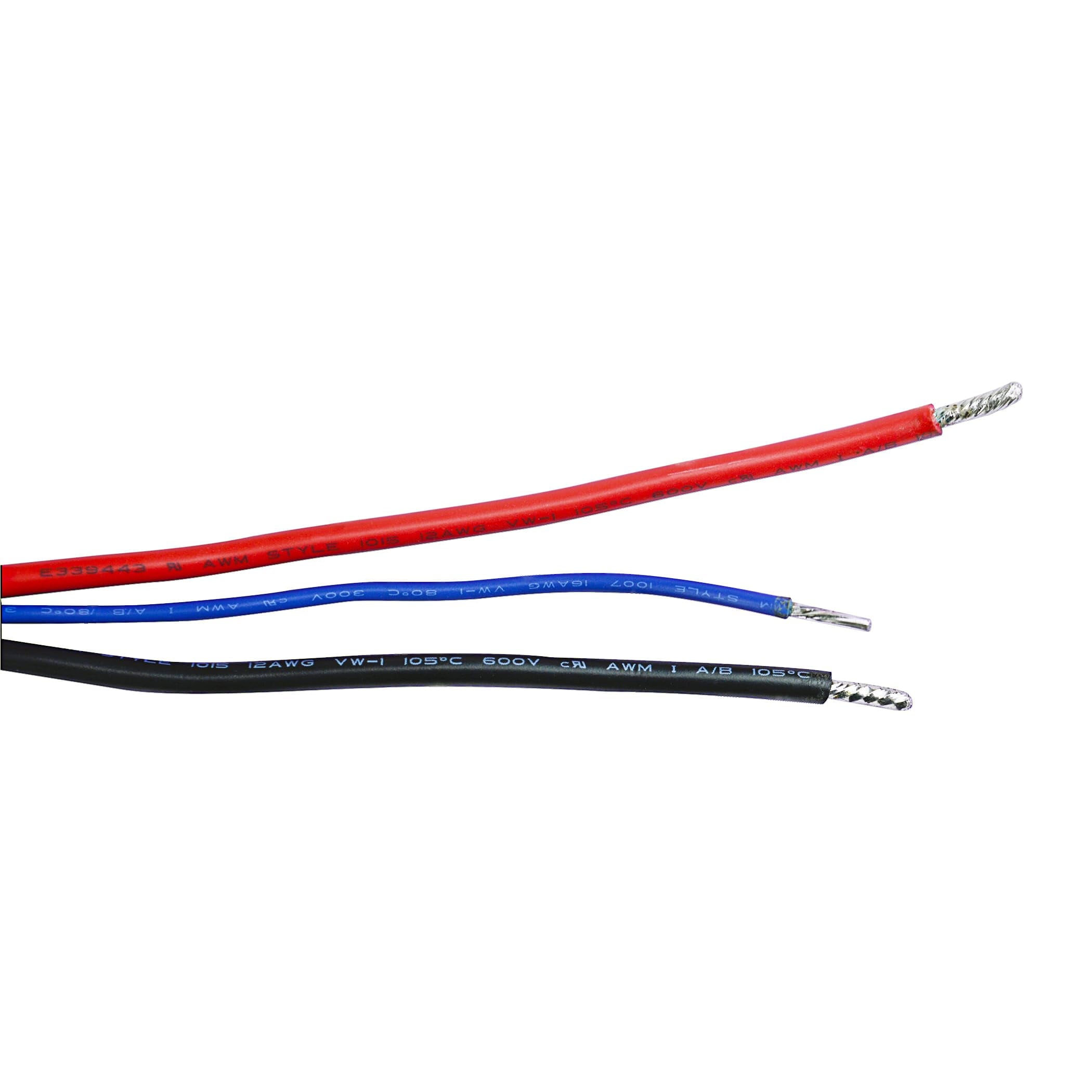

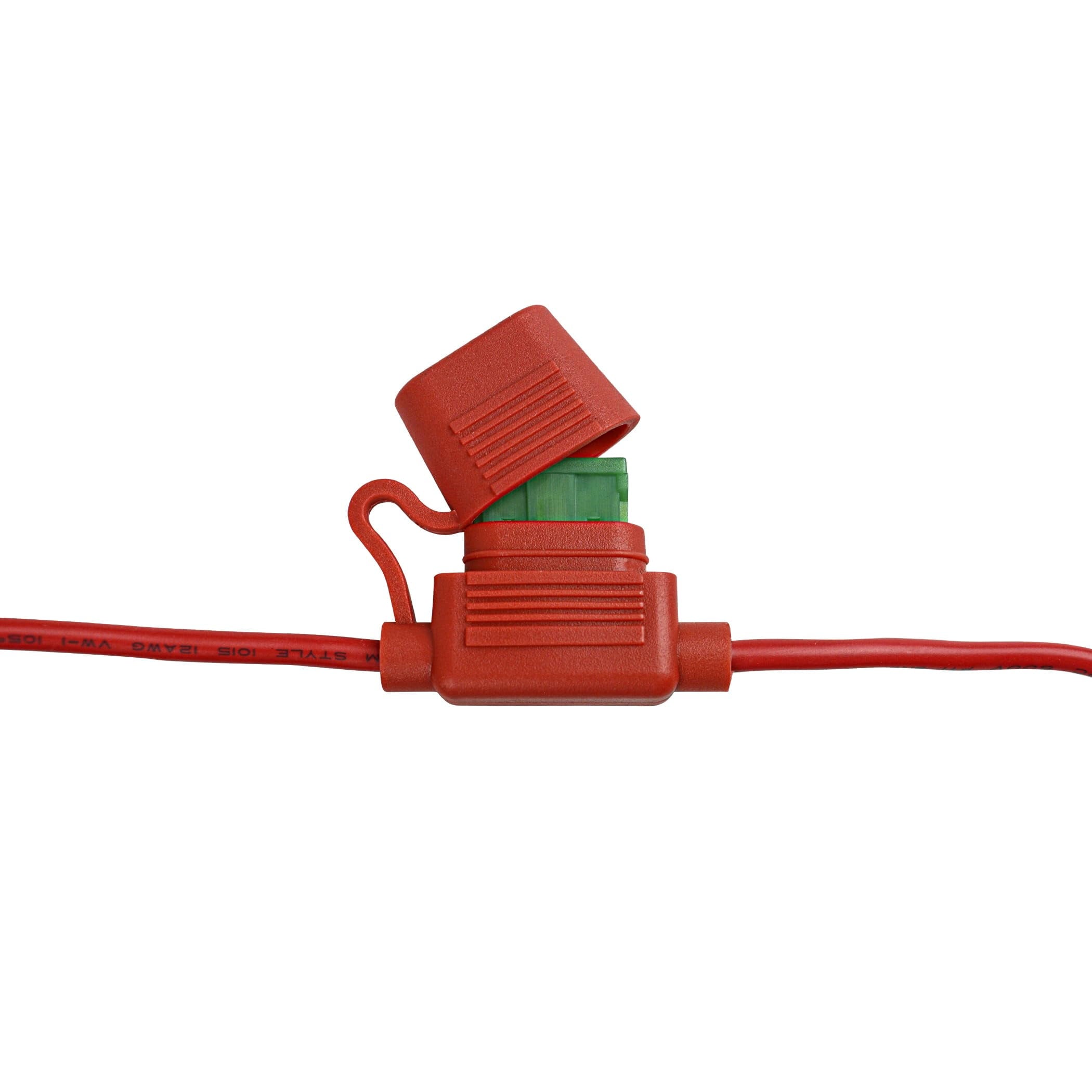

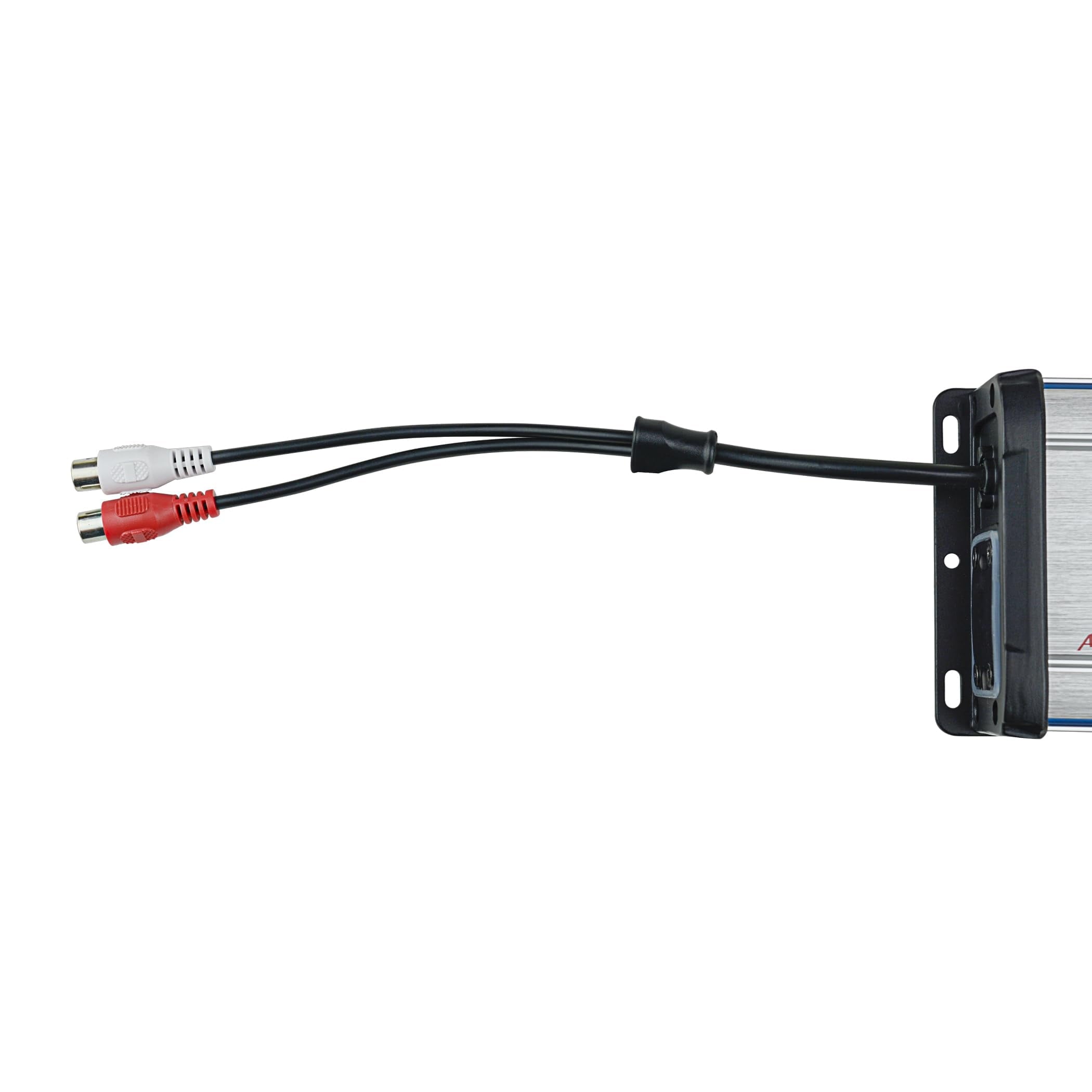

With an IP rating of IPX67, the amplifier is designed to get wet and not miss a beat. The Amp is bridgeable to provide more flexibility. The input side of the amplifier has an IP67 connector. The amplifier comes with a RCA pigtail that allows the user to use any radio or Bluetooth controller with an RCA output with this amplifier. The power cables have a water resistant fuse holder to reach any battery location whether it be in a side-by-side, ATV, UTV, Boat, or motorcycle.
Features:
100 WATTS RMS X 2 CHANNELS at 4 OHMS
160 WATTS RMS X 2 CHANNELS at 2 OHMS
320 WATTS RMS X 1 CHANNEL at 4 OHMS

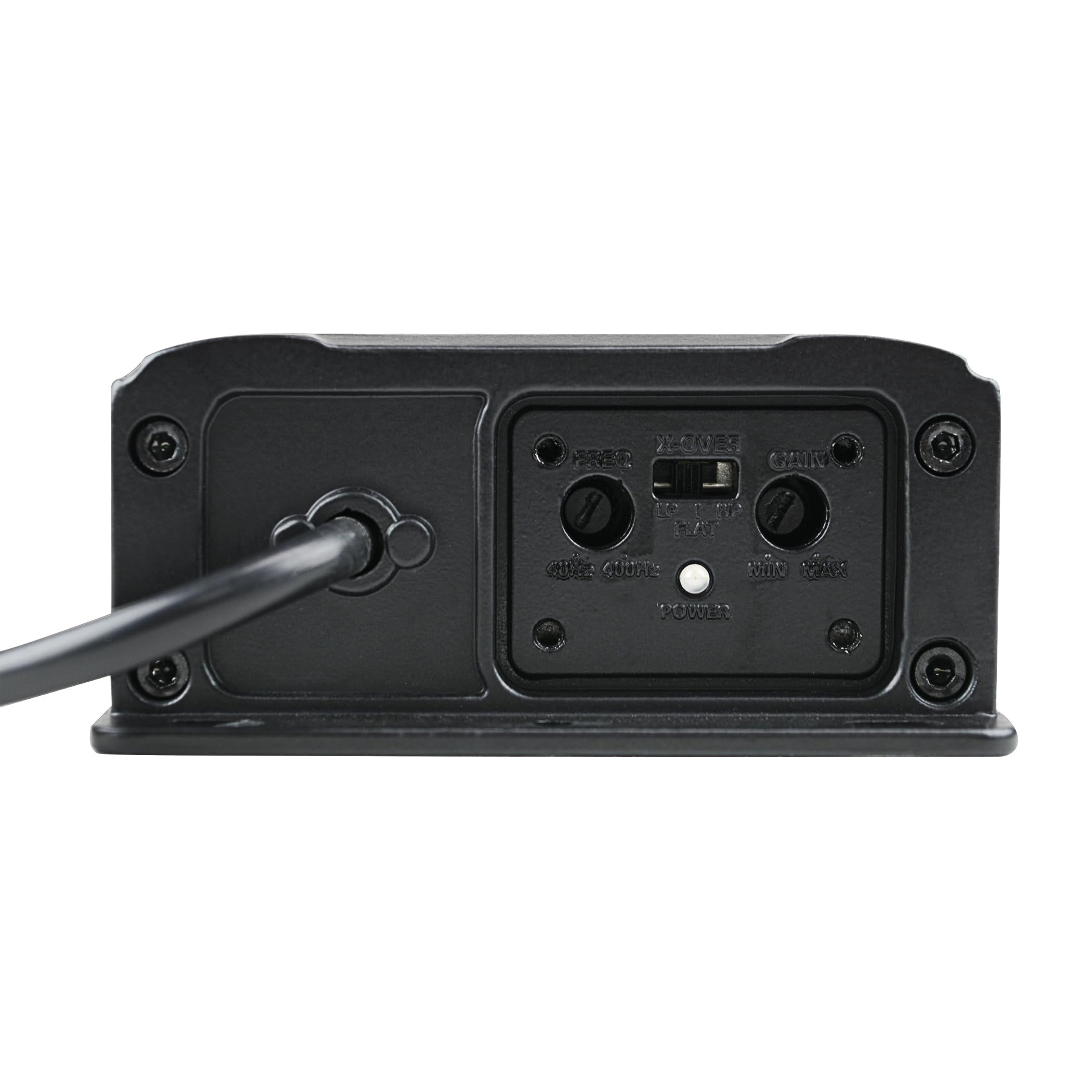

Adjustable 12db high pass/low pass crossovers
CHIPSET – Full Range Class D using IR (International Rectifier) control chips
PCB BOARD: SMD 4 layers conformal coated
WATER RESISTANCE: IPX67
THO: .07percent S/N RATIO:> 90db
FREQ RANGE: 20Hz-20KHz
FUSING: 30 amp
Dimensions: W 192MM H 40MM D 89MM
- Waterproof Level: IP67
- Freq. Response (-3dB): 20Hz – 20KHz
- Output Power (RMS) @ 1% 1KHz 14.4V Stereo @ 4 OHMS: 2 X 100W Stereo @ 2 OHMS: 2 X 160W
- Crossover Range High and Low Pass: 40Hz @ 12dB/OCT
