BRAND NEW
AUDIOPIPE APHF-5000D-H1
1-Channel / Monoblock 5000 Watts Max Full-Range Class-D Car Amplifier
Our APHF-5000D-H1 Full Range Class D MOSFET Amplifier delivers an impressive 5000 Watts of clear and powerful professional audio. By harnessing Full Bridge Class D technology, this amplifier can provide more power to the load compared to a single-ended amplifier. Full bridge amplifiers are inherently more efficient, utilizing the entire power supply voltage. Additionally, the APHF-5000D-H1 features a comprehensive four-point protection system, guarding against electrical shortages, overheating, low voltage, and overvoltage. Take control of your audio system from the driver’s seat with the extended Bass knob, while the clip monitor indicator alerts and ensures distortion-free sound. Boost your audio experience with our Full Range Class D MOSFET Power Amplifier!
Key Features:
FULL RANGE CLASS D MOSFET AMPLIFIER:
Our Full Range Amplifier utilizes advanced pulse-width modulation (PWM) techniques to efficiently deliver power to your speakers, resulting in clearer, louder sound.
DESIGNED WITH ADVANCED MOSFET CIRCUITRY:
Our Full Range Class D Mono Amplifier incorporates a specially designed circuitry that combines dual internal amplifiers in BTL mode to deliver high output power incased in a small footprint heatsink without sacrificing sound quality or performance.
MAXIMUM POWER OUTPUT:
As a result of its ability to deliver more power to the load than a single-ended amplifier, this amplifier ensures efficient power output and superior performance up to 5000 Watts.
UNMATCHED PERFORMANCE:
Our amplifiers are the premier choice for “Brazilian Style” amplification with a track record of proven performance, ensuring an exceptional car audio experience.
FREQUENCY RESPONSE: 10Hz-20KHz
CONTINUOUS POWER OUTPUT:
RMS @ 4 Ohm (<1% DISTORTION): 1600W (14.4V)
RMS @ 2 Ohm (<1% DISTORTION): 3200W (14.4V)
RMS @ 1 Ohm (<1% DISTORTION): 5000W (14.4V)
SIGNAL TO NOISE RATIO: ≥85dB
INPUT SENSITIVITY: 0.25 – 4V
OVERLOAD PROTECTION:
This amplifier is equipped with overload protection, ensuring a safe and reliable audio experience.
OVERHEAT PROTECTION:
This amplifier features an advanced heatsink, designed to provide superior overheat protection.
OVER-VOLTAGE PROTECTION: 16V
UNDER-VOLTAGE PROTECTION: 9V

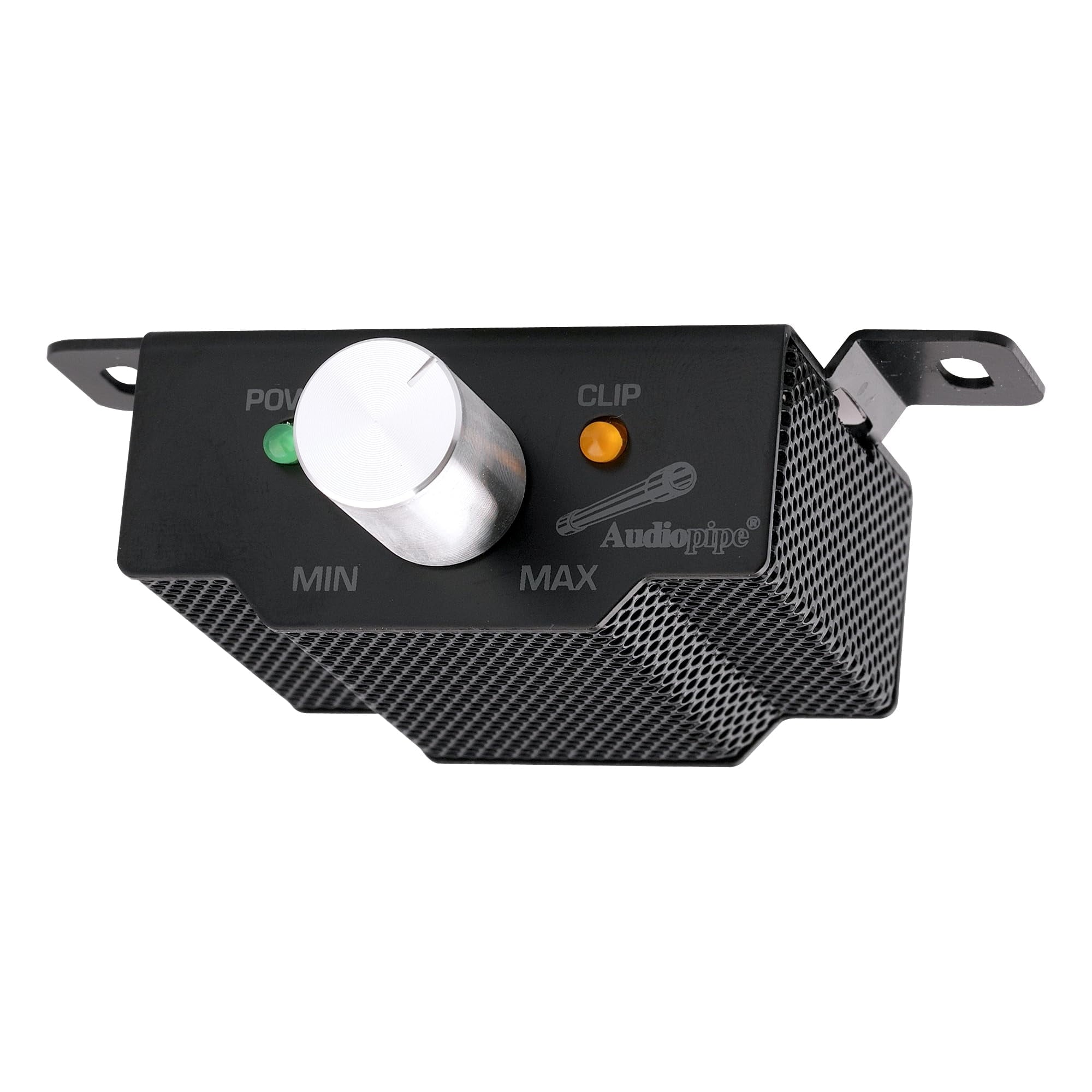

REMOTE SUBWOOFER VOLUME CONTROL:
This amplifier comes equipped with a remote bass control knob, clip LED, and power on/off LED indicator. Easily control your audio sound level and monitor your amplifier’s performance.
HIGH PASS: 10Hz-80Hz 12dB/Octave
LOW PASS: 80Hz-20KHz 12dB/Octave
BASS BOOST: 0-12 dB @ 35Hz-90Hz
DIMENSIONS: 10.2″ x 9″ x 2.9″ (L x W x H) 259 x 229 x 73 mm
- 1-Ch / Monoblock Car Amplifier
- Max Power Output: Up to 5000 Watts
- Full Range Class-D MOSFET
- Frequency Response: 10Hz-20KHz
