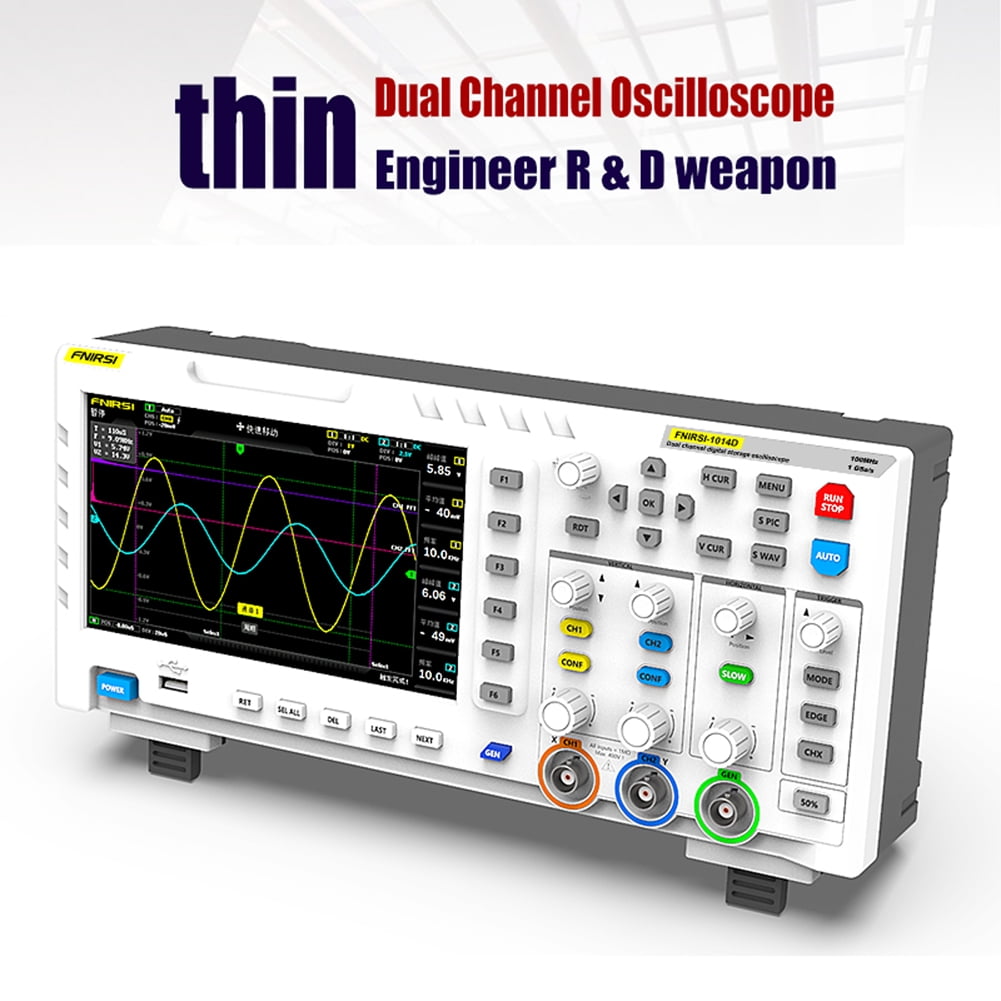

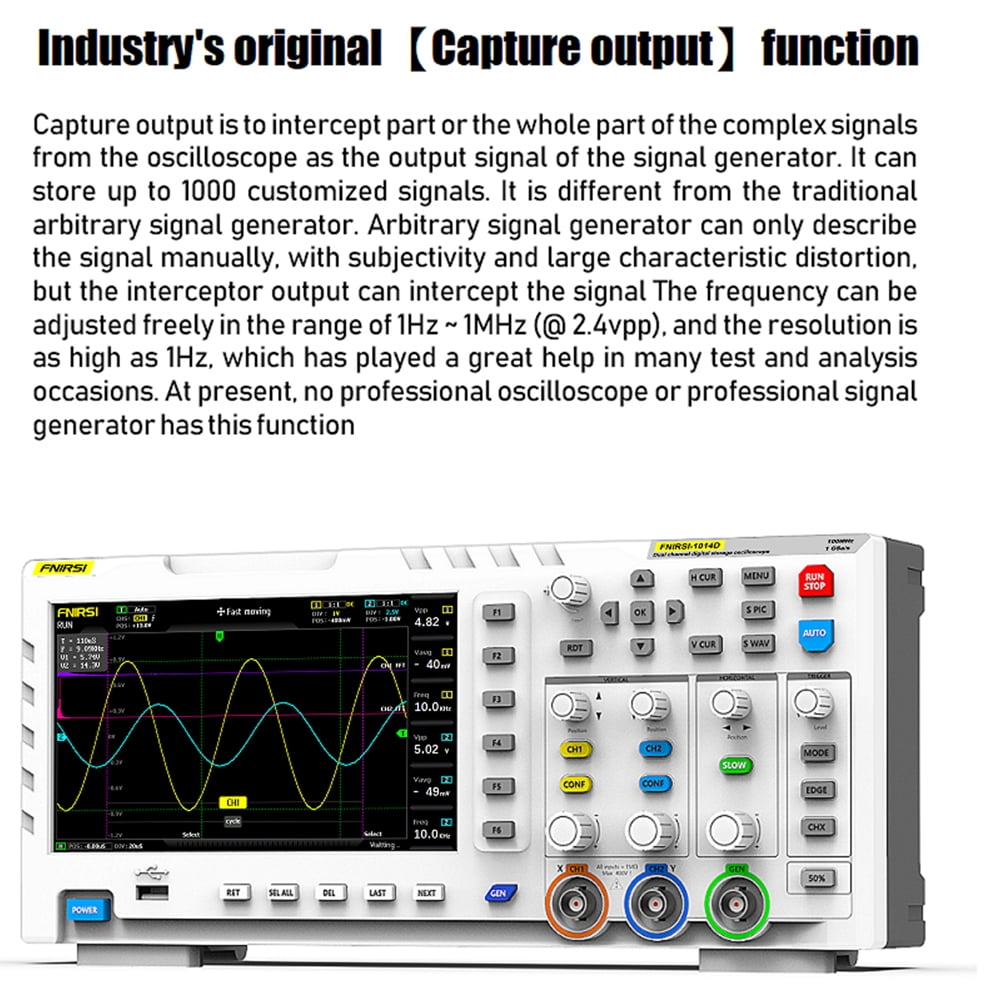

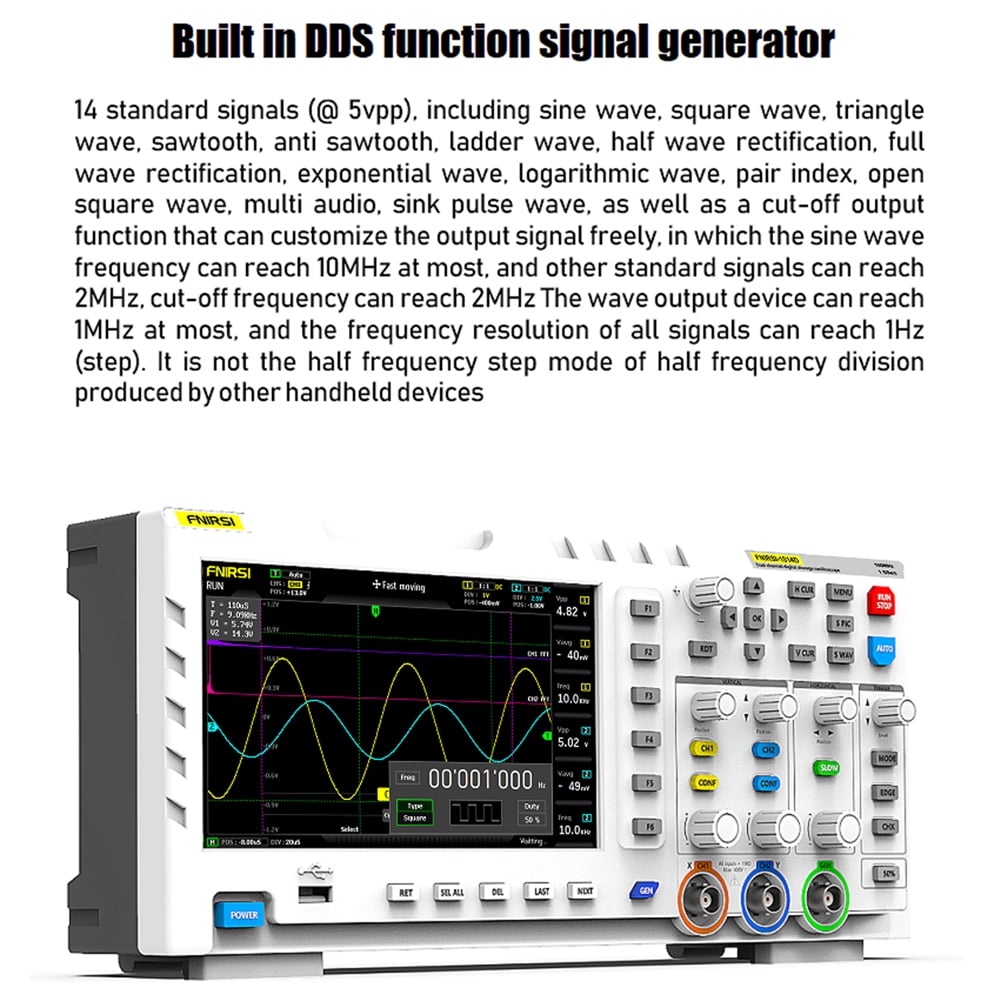

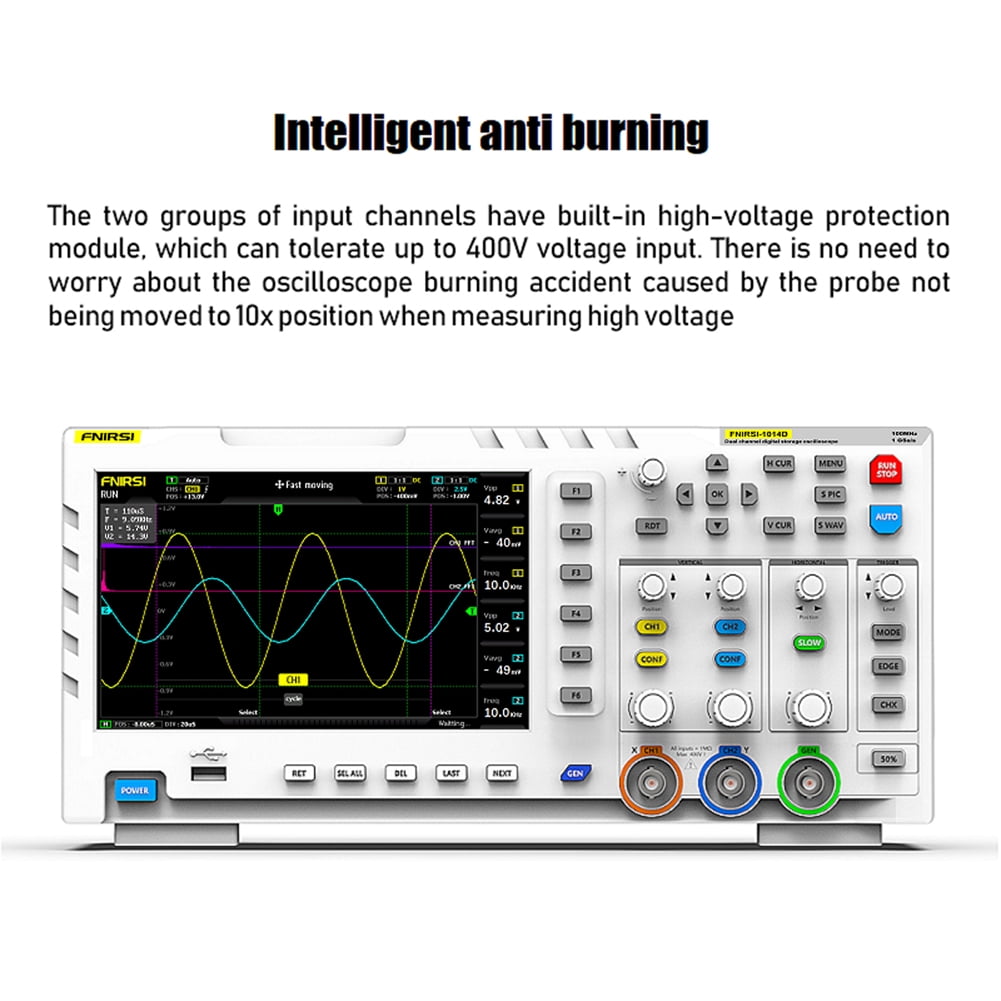

FNIRSI-1014D 7 inch LCD Portable 2-Channel digital storage oscilloscope signal generator FNIRSI-1014D is a two-in-one oscilloscope and signal generator, the real-time sampling rate is 1GSa / s and with 100MHz* 2 ana-log bandwidth, with 7inch TFT LCD screen, the built-in high-voltage protection module can tolerate up to 400V continuous voltage, without worrying about the oscilloscope burning accident caused by the probe not moving to 10 x gear, built-in DDS function signal generator and the industry’s original chopping output (@ 2.5vpp), all signal frequency step is 1Hz, support 14 kinds of standard function signal and a customizable chopping signal, chopping The output device intercepts part or the whole part of the complex signals measured by the oscilloscope as the output signal of the signal generator, which can store up to 1000 customized cut-off signals. Come on and try it, it will not let you down.
Features:
- Easily Measuring
- Original Capture Output
- Professional Designed

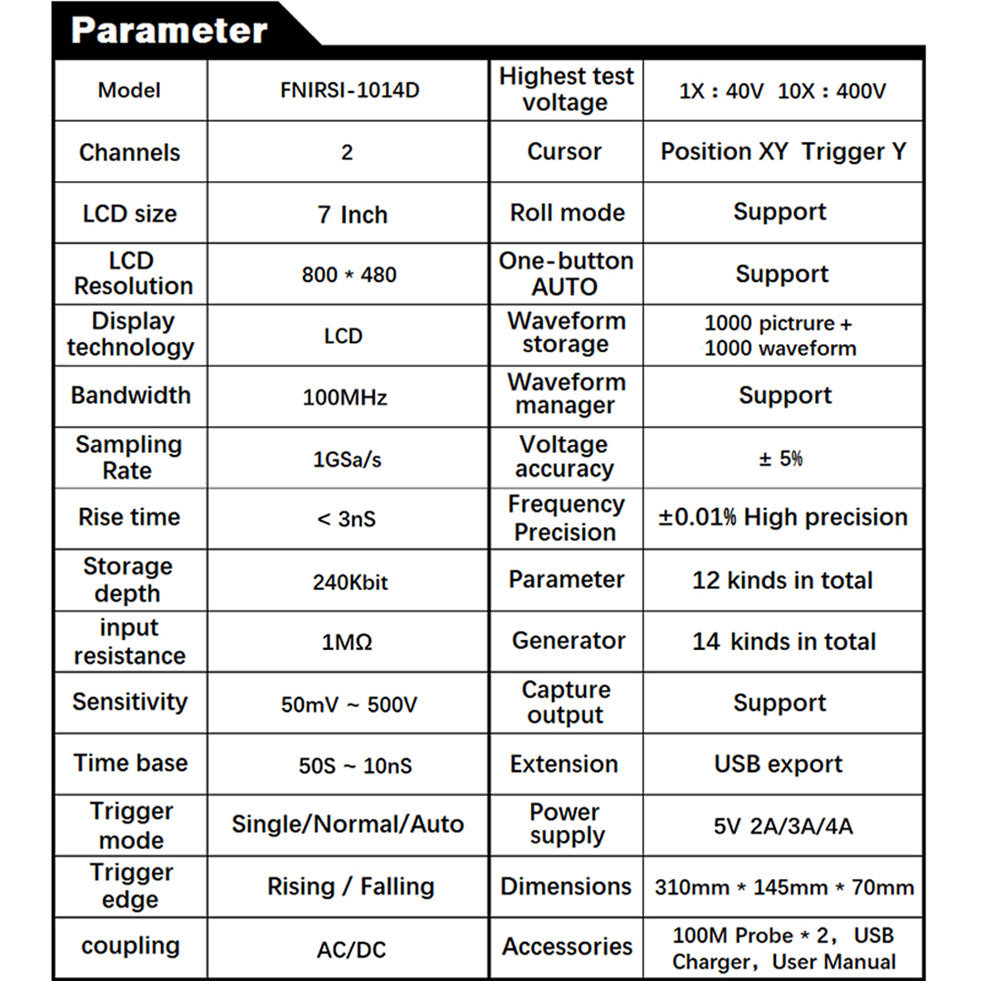

Specifications:
- Material: ABS
- Analog bandwidth: 100MHz * 2
- Number of channels: 2 channels
- Maximum real-time sampling rate: 1GSa/s
- Vertical sensitivity: 50 mV/div ~ 500 V/div
- Horizontal time base range: 50S/div ~ 10nS/div
- Maximum test voltage: 40 V (1X probe), 400 V (10X probe)
- Storage depth: 240Kbit
- Input resistance: 1MΩ
- ADC precision: 8bits
- Coupling mode: AC/Direct Current

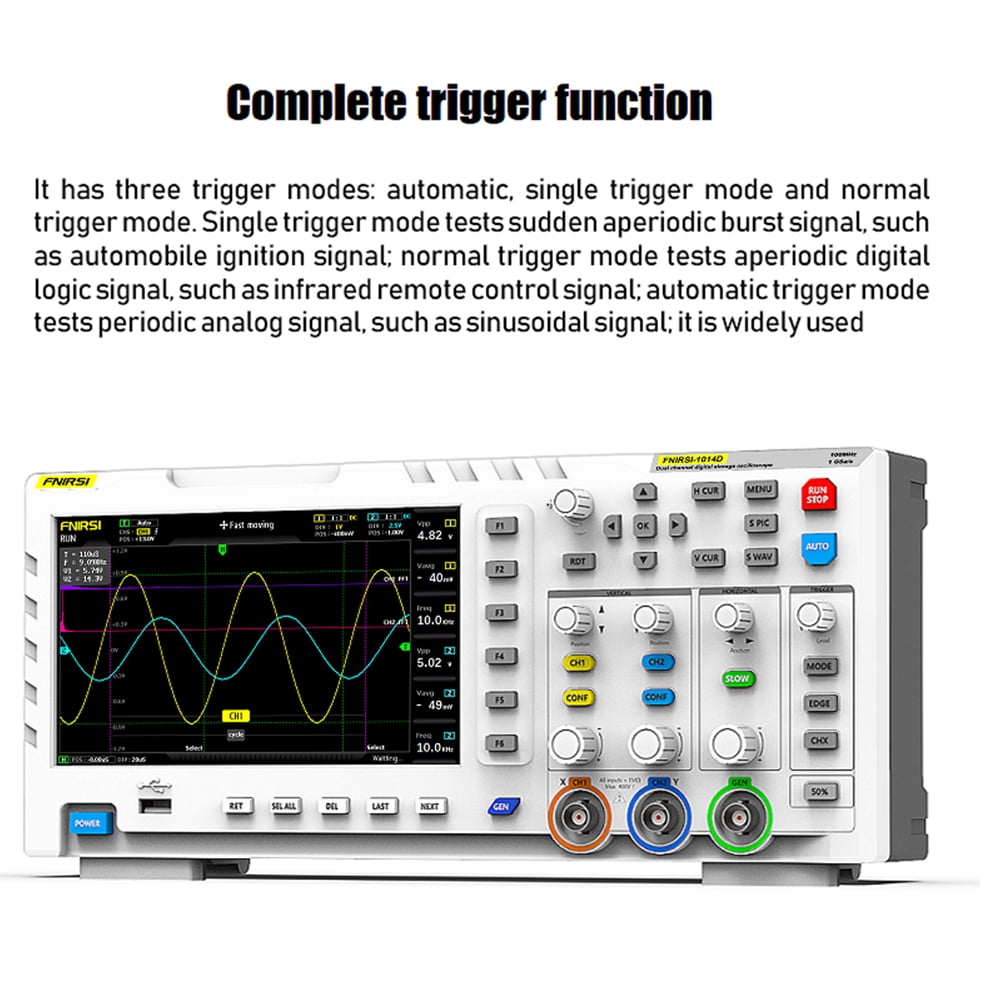

- Trigger mode: Single, Normal, Auto
- Trigger edge: Rising edge/Falling edge
- External trigger voltage 0~40 V

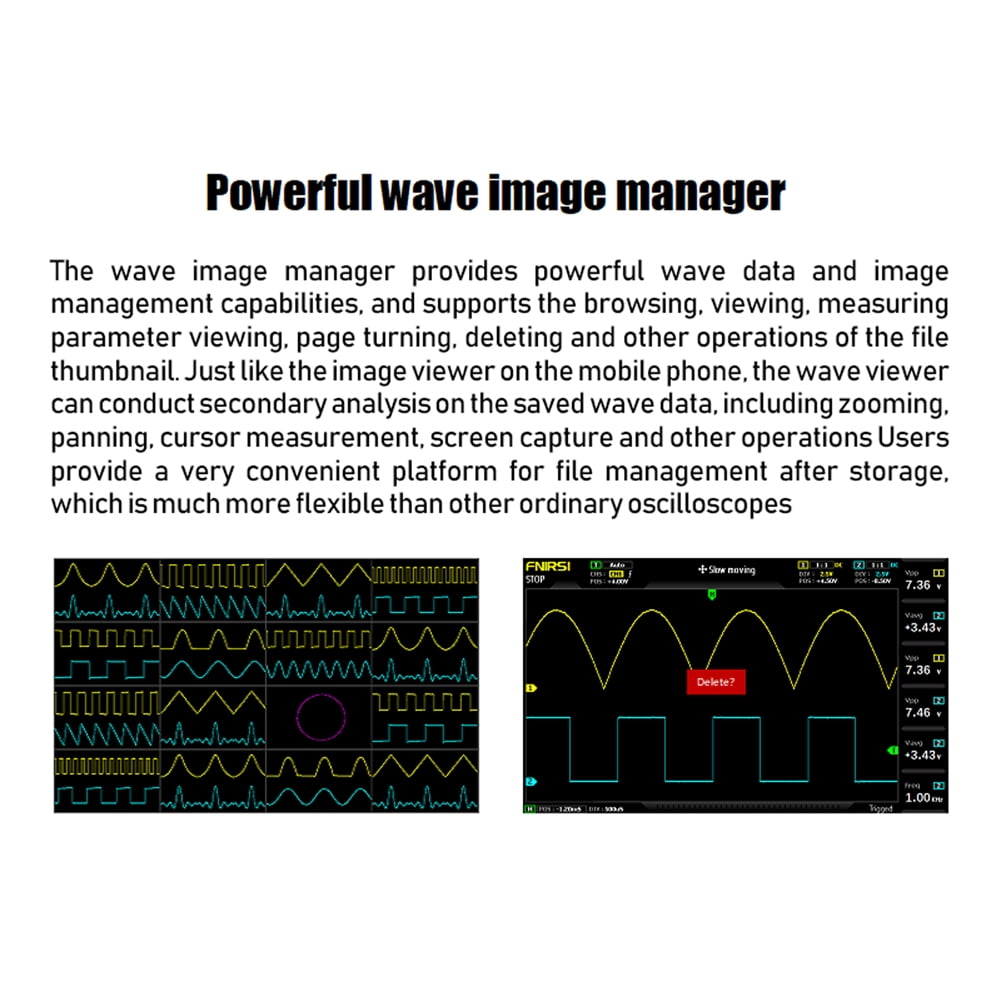

- Extension ports: USB picture export
- Package size: 340 x 140 x 70 mm / 13.4 x 5.5 x 2.8 in
- Package weight: 1949 g / 4.3 lb

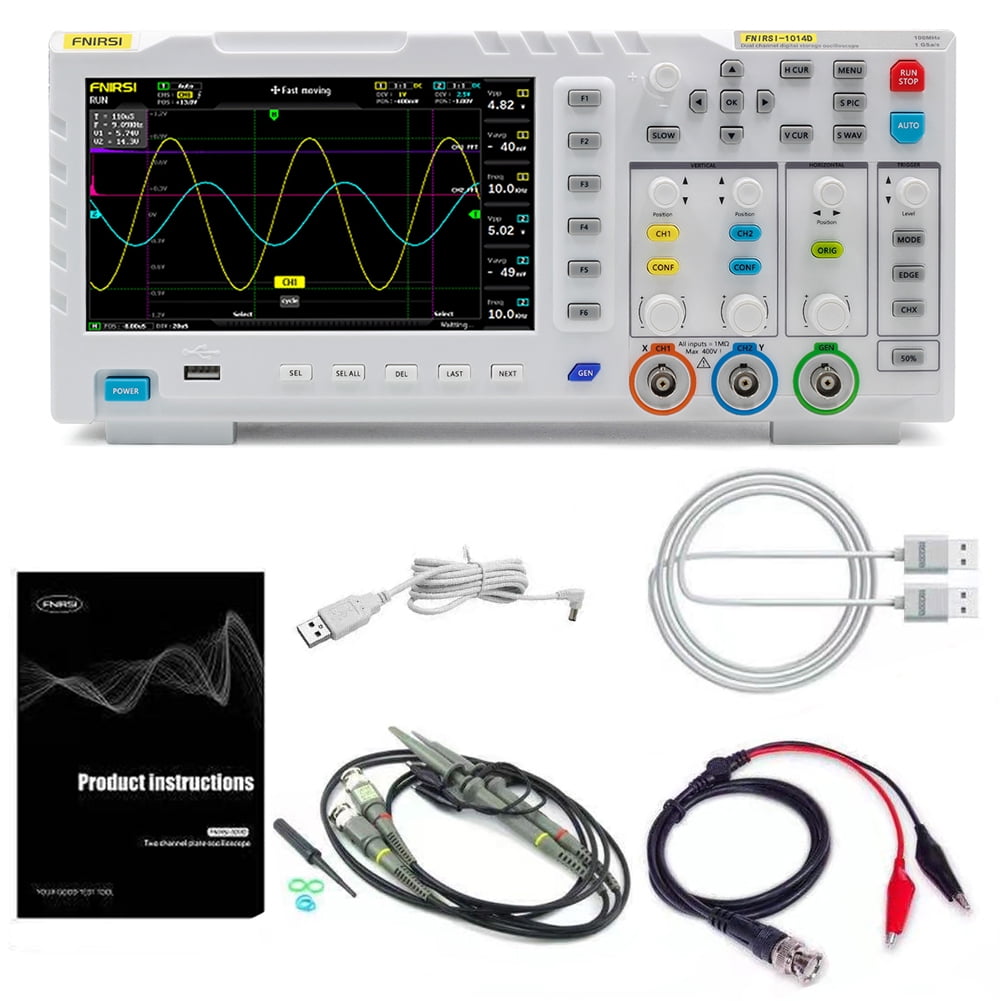

Packing list:
- 1 x FNIRSI-1014D Oscilloscope host
- 2 x Matching 100MHz Probe (1x and 10x）
- 1 x Clip
- 1 x USB data line
- 1 x English user manual
