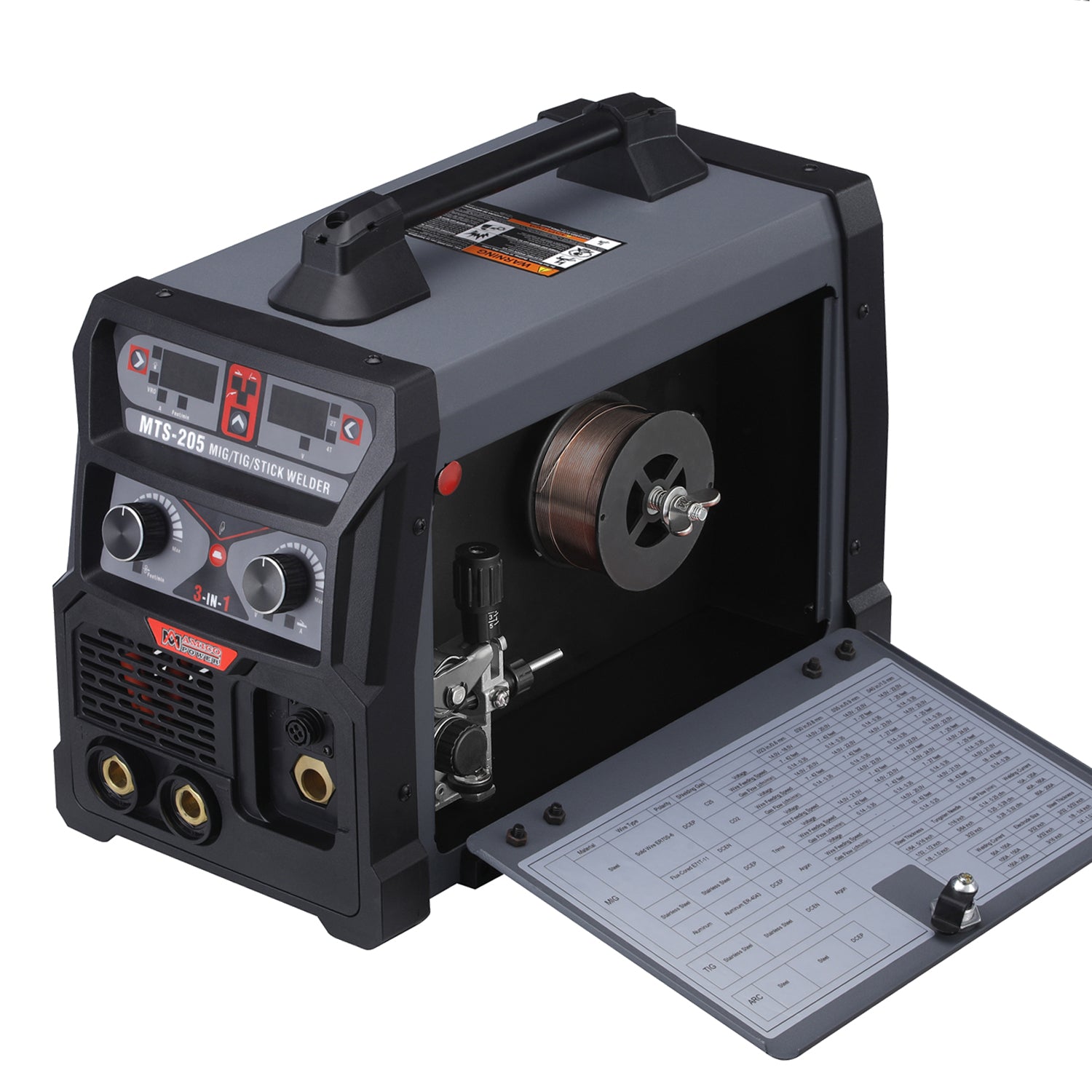

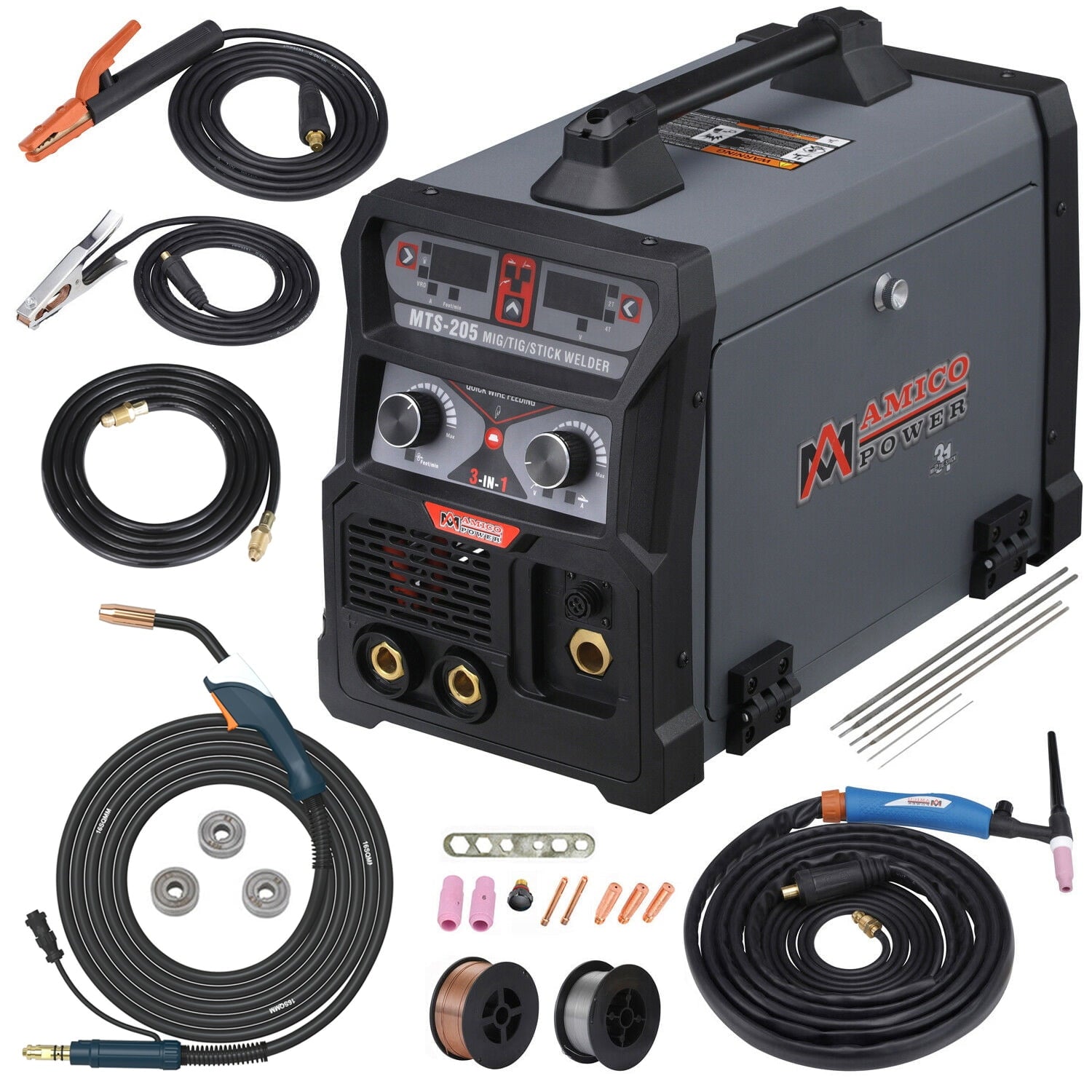

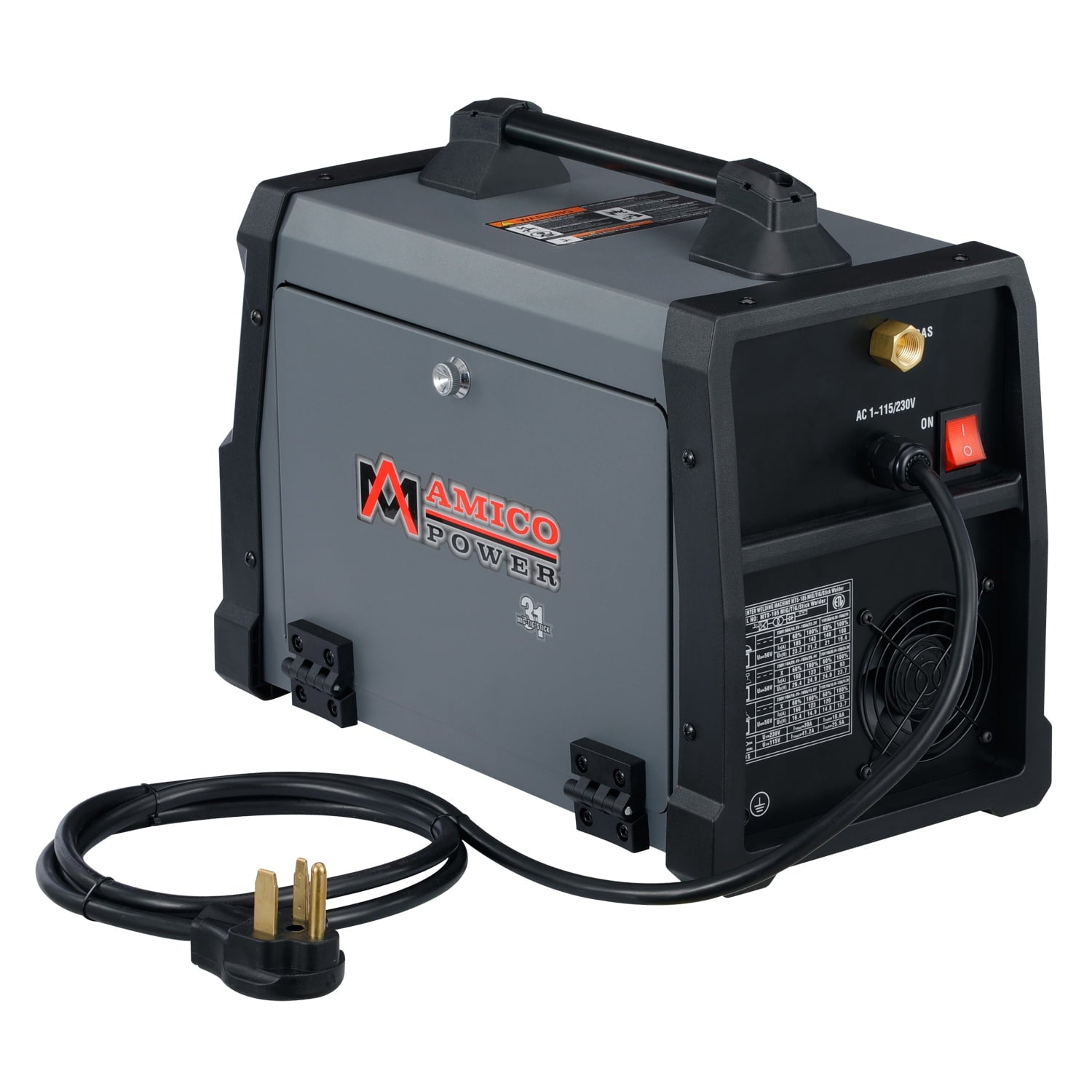

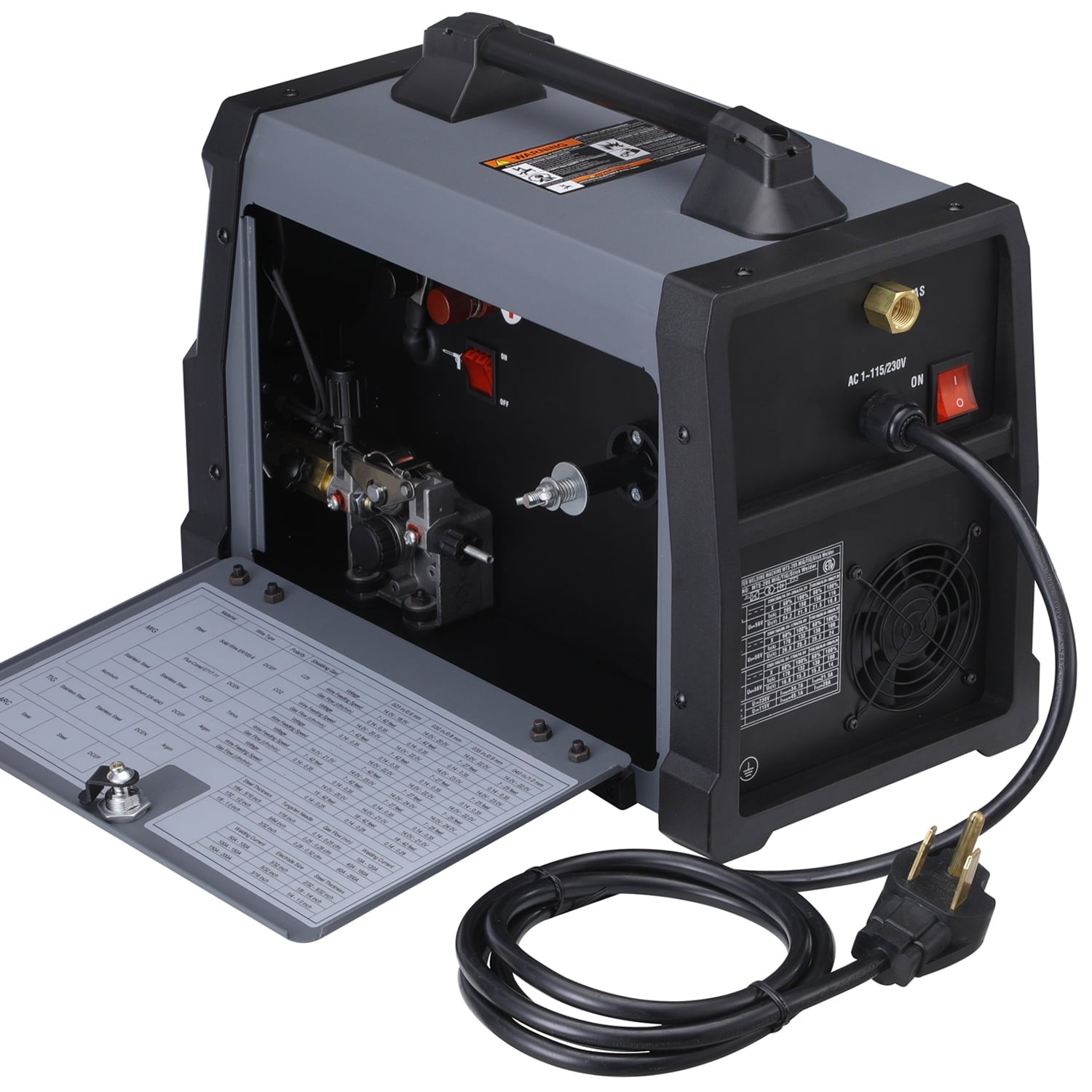

AMICO Power 3-IN-1 MIG/TIG/STICK Arc Combo Welding Machine, Very Easy to weld 1/2″ Aluminum. MTS-205 is the perfect choice for projects and repairs around the home and auto body shop. This welder can work well with solid wire and flux wire as well as aluminum wire. It also has the TIG and STICK function, can weld steel and stainless steel perfectly. The welder output range 10-205 amp. It uses standard flux-core wire(E71-gs) or steel wire 0.6-1.0mm, and aluminum wire. It has settings to easily adjust the output according to the thickness and changing the polarity according to the type of wires. Specifications: Welder Type: 3-IN-1 MIG/TIG/STICK Combo Welder, Output Terminal Type: Direct Wire, Power Supply: AC 100V-240V/Single Phase/50-60Hz, Effective Input Current: 115V: 35.0A(MIG)/21.5A(TIG)/35.7A(STICK), 230V: 27.0A(MIG)/15.5A(TIG)/24.8A(STICK), Maximum Input Current: 115V: 45.2A(MIG)/27.7A(TIG)/46.0A(STICK), 230V: 34.8A(MIG)/20.0A(TIG)/32.0A(STICK), Current Range Output: MIG: 115V/50A-150A, 230V/50A-205A; TIG: 115V/10A-130A, 230V/10A-170A; STICK: 115V/10A-130A, 230V/10A-170A. Nominal DC Open Circuit Voltage (OCV): 56V, Welding Output,104F(40C),10 min(230V): MIG: 205A/24.2V, TIG: 170A/16.8V, STICK: 170A/26.8V. Duty Cycle: MIG: 60% at 205A, 100% at 158A; TIG: 60% at 170A, 100% at 132A; STICK: 60% at 170A 100% at 132A. Efficiency: 93%, Power factor: 0.85, Cooling Method: Fan Cooled. Product Size: 13.4 x 9.1 x 17.3 in., Product Weight: 27.0 lbs. Package Size: 24.2 x 14.2 x 18.1 in., Package Weight: 50.0 lbs. Package Includes: 13 ft. 250A pro. MIG gun and cable assembly, 13 ft. 250A pro. TIG Torch gun and cable assembly, 10 ft. 500A electrode holder and cable assembly, 10 ft. 630A work clamp and cable assembly, 120V/240V power plug adapter, 8 feet air hose use for Co2 and Argon connect, 1 spool 2 lbs. aluminum wire use for MIG weld, 1 spool 2 lbs. steel wire use for MIG weld, 2 tungsten Needle use for TIG weld, 4 electrodes use for Stick/Arc Weld, 1 V-drive roll for 0.023” & 0.030” (0.6mm & 0.8mm), 1 U-drive roll for 0.030” & 0.035” (0.8mm & 0.9mm), 1 V-drive roll for 0.035” & 0.040” (0.9mm & 1.0mm), Quick manual & Owner’s Manual.
Amico Power MTS-205 205Amp MIG/TIG/Stick Combo Welder, 28 lb, Dual Voltage Welding Machine, Gray
- 3-in-1 welding machine: MIG, TIG, and Stick capabilities for versatile welding applications
- Dual voltage operation: Compatible with both 110V and 230V power supplies for flexibility in various settings
- High output range: Welds aluminum and other metals with an output range of 10-205 amps
- Efficient cooling: Features a fan-cooled design to prevent overheating during extended use
- Lightweight design: Weighs only 27 lbs, making it easy to transport and maneuver
